Bio-TFF Automatic Tangential Flow Filtration System
The Bio-TFF Tangential Flow Filtration System is an automatic ultrafiltration UF/DF system that is easy to use and appropriate for small-scale manufacturing and pilot studies in the development of biopharmaceutical processes.
Technical Features of Bio-TFF Tangential Flow Filtration System
01.
Hygienic design, in accordance with GMP and ASME BPE regulations;
02.
Use a sanitary-grade quaternary diaphragm or rotor pump with minimal shear force and pulse.
03.
Includes automatic TMP control, concentration, equal volume filtration, and other features.
04.
Includes a built-in integrity detection module, eliminating the requirement for an external detector.
05.
Our Chinese and English operating systems meet FDA 21 CFR Part 11 criteria.
06.
Customization can be tailored to specific customer needs.
07.
Provide complete GMP verification documentation and services.
Bio-TFF Automatic Tangential Flow Filtration System
| Model No. | Bio-TFF 1200 | Bio-TFF 2500 | Bio-TFF 5t | Bio-TFF 8t | Bio-TFF 10t | Bio-TFF 20t | Bio-TFF 30t | Bio-TFF 50t | Bio-TFF 60t |
|---|---|---|---|---|---|---|---|---|---|
| Working flow (L/h) | 150 - 1000 | 600 - 2000 | 900 - 4000 | 1500 - 6000 | 3000 - 8000 | 8000 - 16000 | 8000 - 30000 | 20000 - 50000 | 20000 - 60000 |
| Adaptation area (m²) | 0.5~3 | 2~5 | 3~10 | 5~15 | 10~20 | 20~40 | 40~80 | 80~120 | 80~160 |
| Pipe Size (inch) | 3/4" | 1" | 1.5" | 1.5" or 2" | 2" | 2.5" | 3" or 4" | 4" | 4" or 6" |
| pH range | 0~14 | ||||||||
| Conductivity range (mS/cm) | 0.1uS/cm ~ 300mS/cm | ||||||||
| Pipe material | SS316L (ASME BPE), Electric projectile Ra≦0.4µm | ||||||||
| Solvent mixing tank (L) | Optional (20/30/50/100 and others) | ||||||||
| Fluid replenishment pump | Optional | ||||||||
| System pressure (bar) | ≤6 | ||||||||
| Power | 220/380VAC 50Hz | ||||||||
| Compressed air (bar) | 5~7 | ||||||||
Related Products

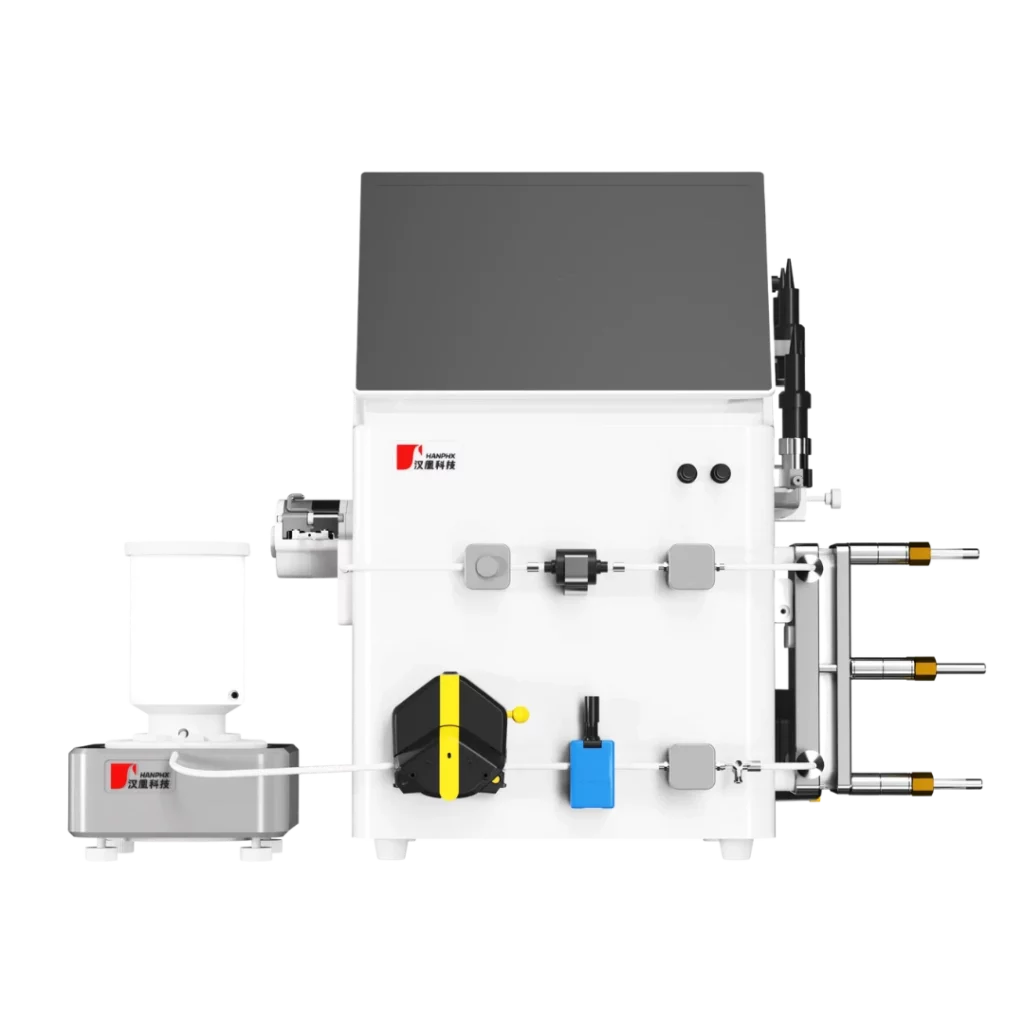

Bio-Lab Automatic Tangential Flow Filtration System

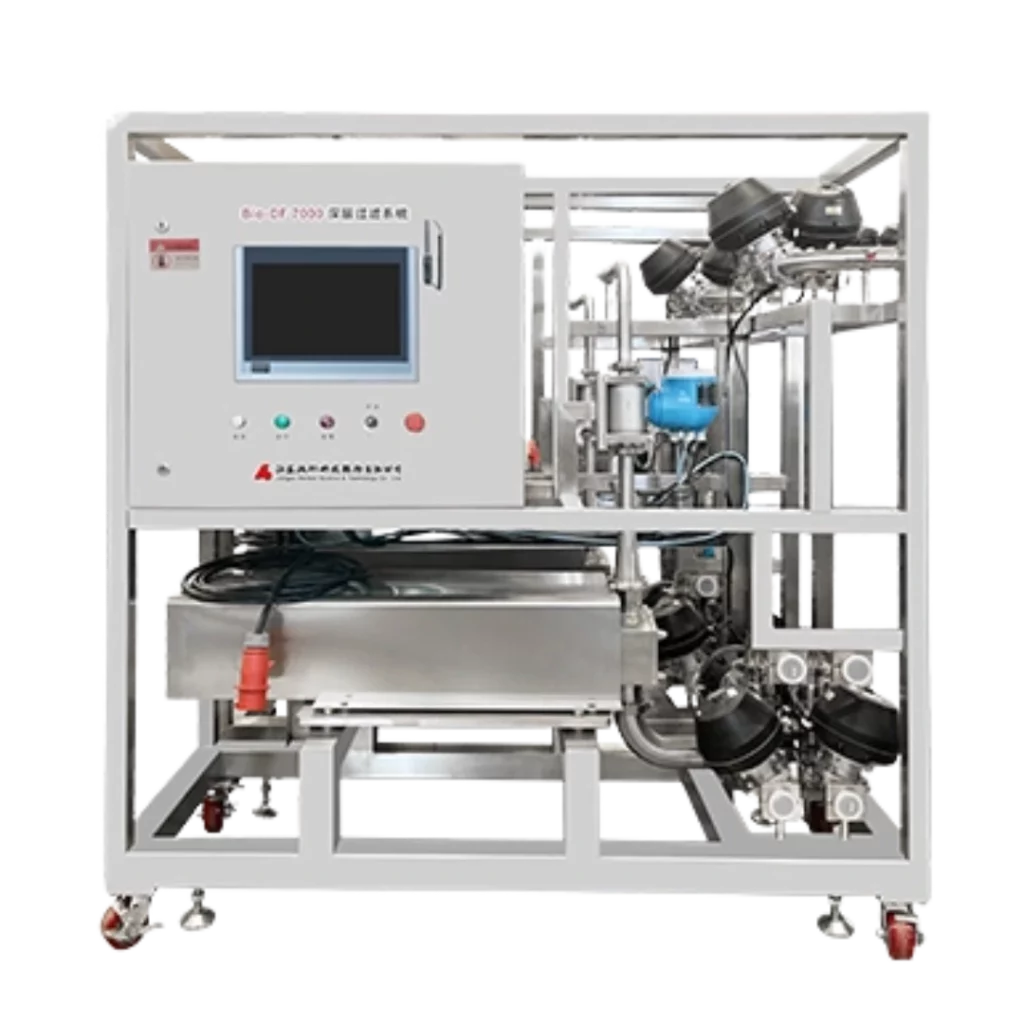

Depth Filtration System

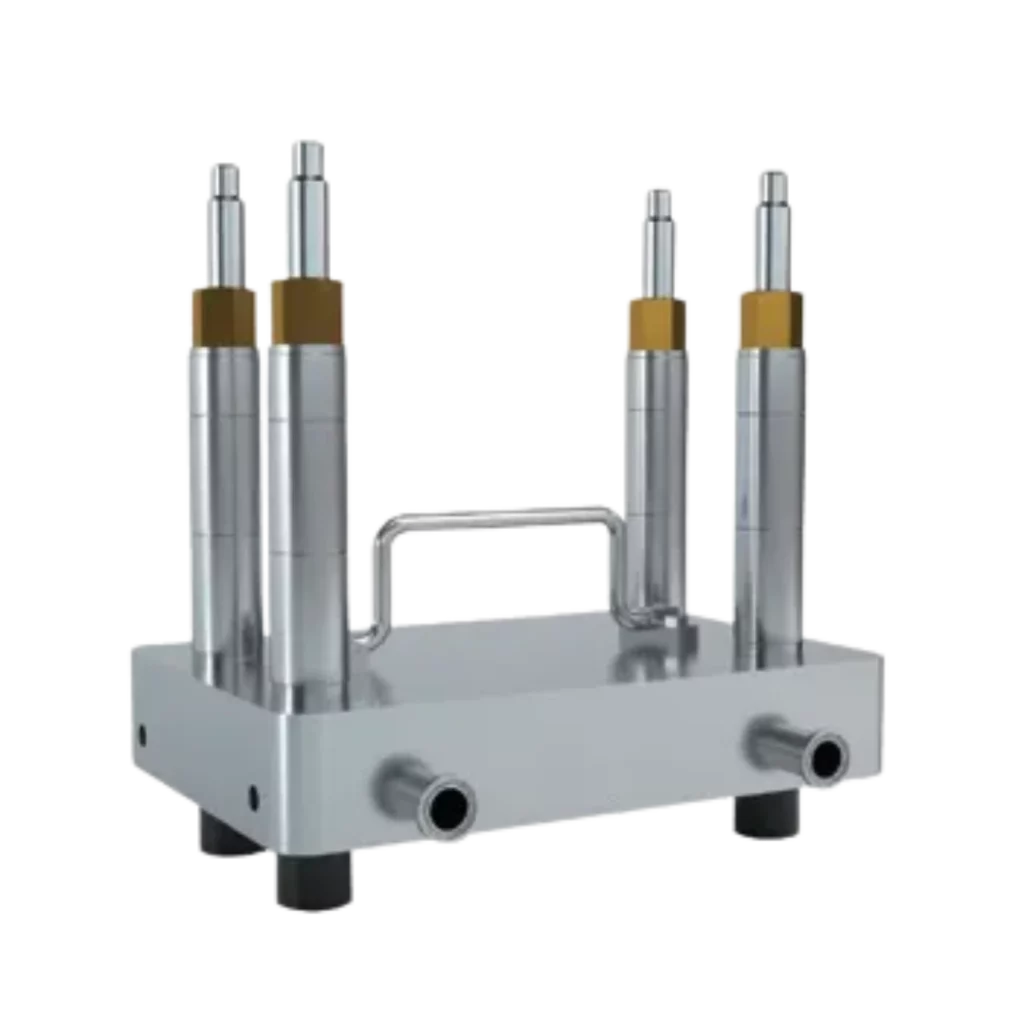

Membrane Cassette Holders
