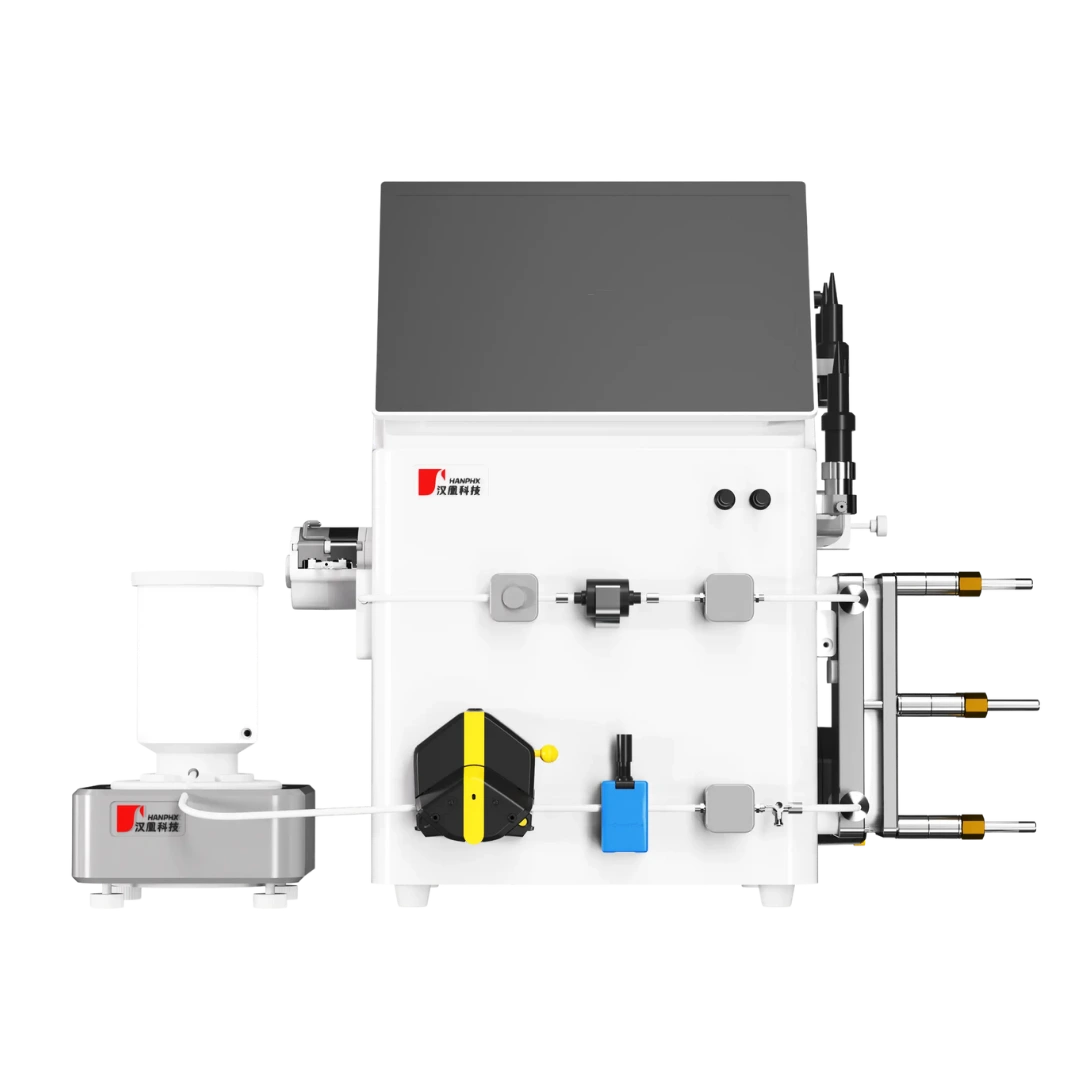

Bio-Lab Automatic Tangential Flow Filtration System
The Bio-TFF Tangential Flow Filtering System is an easy-to-use automatic ultrafiltration UF/DF system designed for biopharmaceutical process development, pilot studies, and small-scale manufacturing. The Bio TFF system is designed in a unique and intelligent manner, which not only enhances process performance but also achieves an incredibly low minimum working volume, maximum ultrafiltration concentration multiple, and optimal product recovery function.
Technical–Features of Bio-Lab Automatic Tangential Flow Filtration System
01.
Hygienic design, in accordance with GMP and ASME BPE regulations;
02.
Use a sanitary-grade quaternary diaphragm or rotor pump with minimal shear force and pulse.
03.
Includes automatic TMP control, concentration, equal volume filtration, and other features.
04.
Includes a built-in integrity detection module, eliminating the requirement for an external detector.
05.
Our Chinese and English operating systems meet FDA 21 CFR Part 11 criteria.
06.
Customization can be tailored to specific customer needs.
07.
Provide complete GMP verification documentation and services.
Bio-Lab Automatic Tangential Flow Filtration System
| Model | Bio-TFF30 | Bio-TFF180 | Bio-TFF850 |
|---|---|---|---|
| Circulating pump flow rate | Peristaltic pump | Quaternary diaphragm pumps | |
| 0-2L/min | 0.7-180L/h | 50-850L/h | |
| Flow rate of the fluid replenishment pump | Peristaltic pump | ||
| The maximum flow rate: 2L/min | The maximum flow rate: 2L/min | The maximum flow rate: 3L/min | |
| Maximum system pressure | 4bar | 6bar | |
| Filter membrane area | 100cm² - 0.1㎡ | 0.1 - 0.5㎡ | 0.5 - 2.5㎡ |
| Weigh | Weighing range 6kg, reading accuracy 0.1g | Weighing range 10kg, reading accuracy 0.1g | |
| Circulation storage tank | PP material, available in 1000ml and 5000ml | ||
| Working Temperature Range | 2-40℃ | ||
| Pressure sensors | Inlet end*1, return end*1, through end*1; Detection range: 0-10bar | ||
| Control mode | Constant pressure, constant current, constant TMP, constant speed, constant weight automatic liquid replenishment, etc | ||
| Computer | Business computers of brands such as HP, Lenovo and Huawei, with memory ≥8G and hard disk ≥1T | ||
| Optional Configurations | Multi-Channel Selector Valves | Automatic switching of samples, replacement buffers, water, alkali, etc | |
| Conductivity detector | 0-999mS/cm accuracy ± 3% | Measuring range: 1μS/cm-100mS/cm, accuracy ±3%; 100-300mS/cm accuracy ±5% (25℃) | |
| Membrane wrapping fixture | Can be clamped 0.1m² ×5 and 0.5m² ×5 Membrane wrapping fixture | ||
| Flowmeter | Multiple brands to choose from, ultrasonic flowmeter | ||
| pH Detector | Detection range: 0-14, accuracy ±0.1 | ||
Related Products
Bio-TFF Automatic Tangential Flow Filtration System

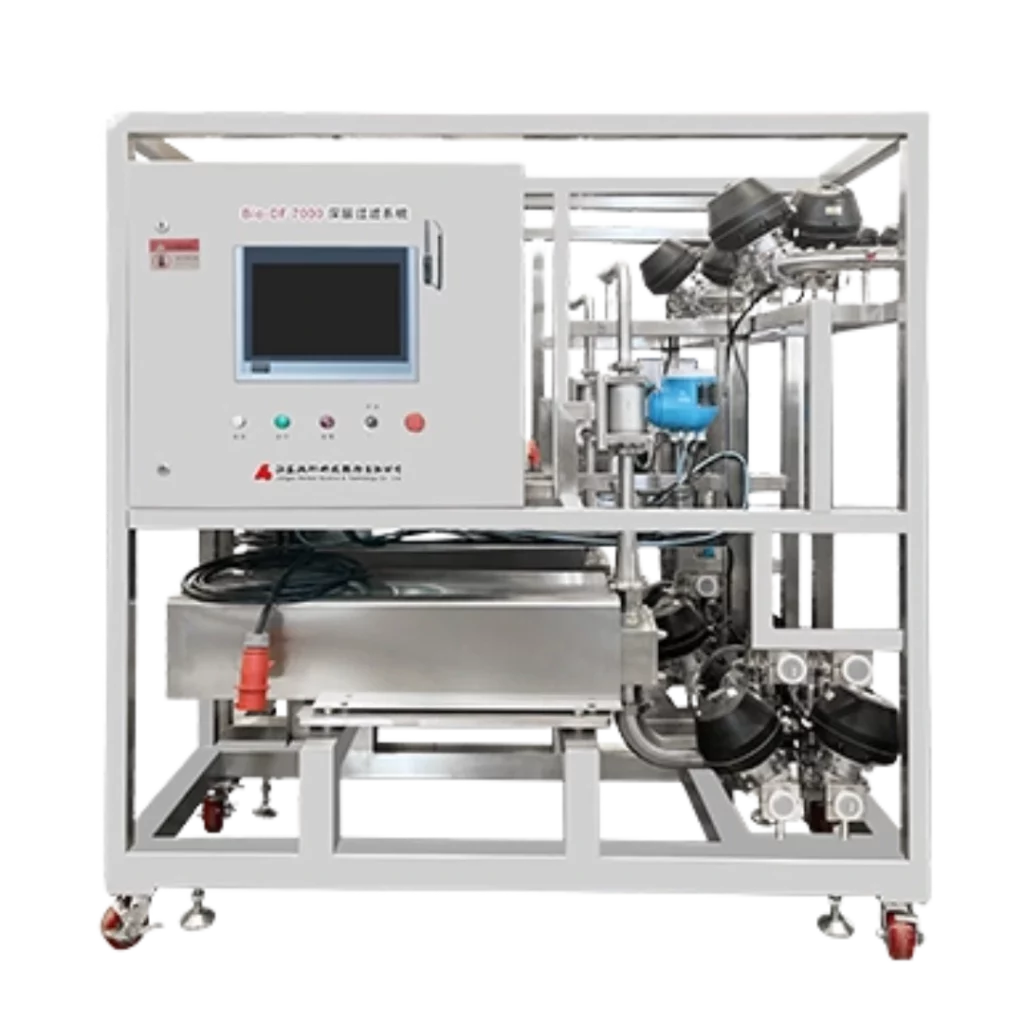

Depth Filtration System
