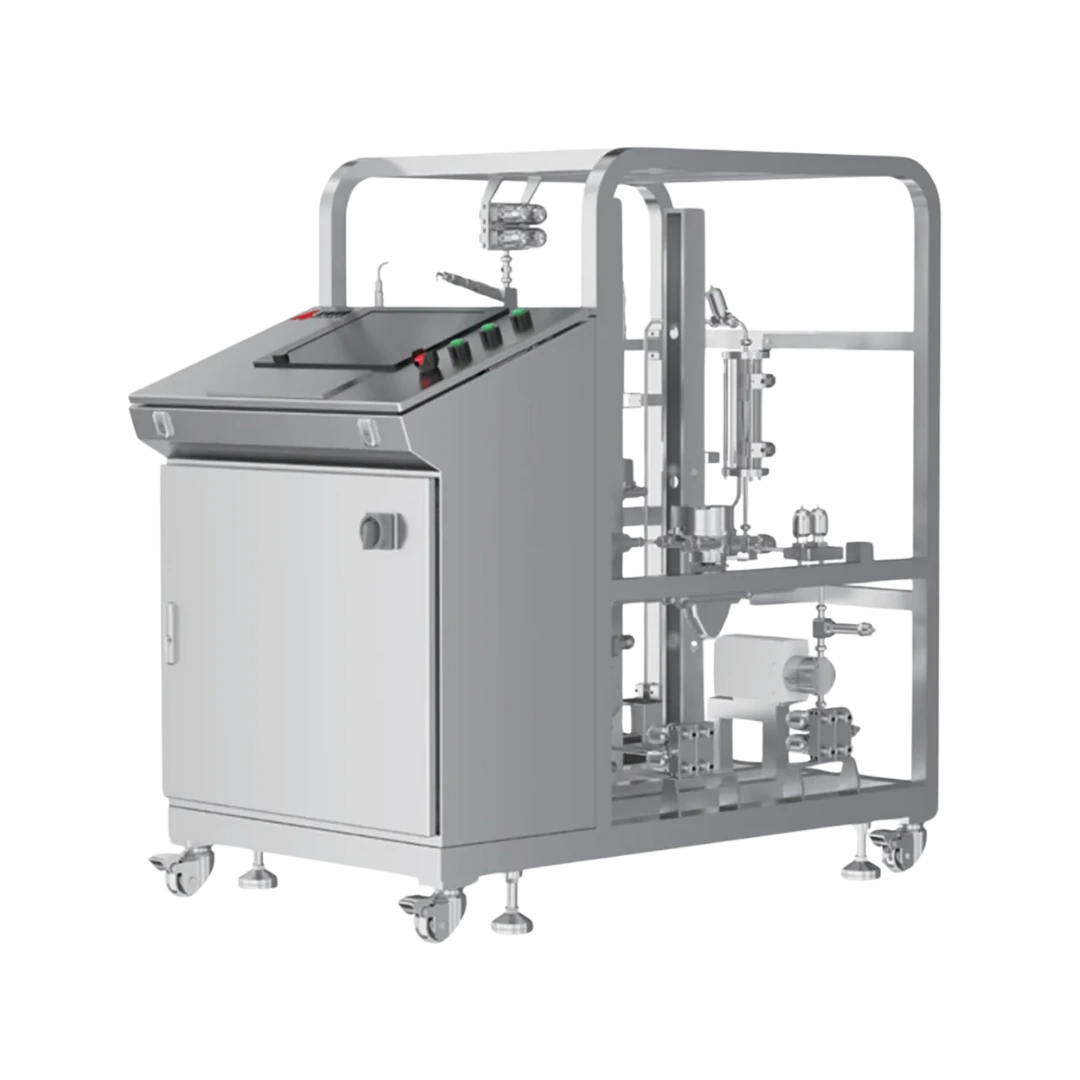

Bio-Pro Pilot & Process Chromatography System
The Bio-Pro® pilot & process chromatography system is appropriate for both pilot and large-scale biopharmaceutical purification procedures. The system is designed with integrated components that meet ASME BPE and GMP criteria, and it can be modified in a variety of ways to meet the needs of each customer. The system can perform activities like balancing, sampling, rinsing, elution, automatic collection, and clean in place, as well as provide clients with GMP-compliant verification documentation.
Features of Bio-Pro® Pilot & Process Chromatography System
Superior Quality and Stability
01.
Important parts of the system use stable, dependable brands that are well-known worldwide;
02.
The pipeline design complies with ASME BPE standards and features automatic welding, Ra ≤ 0.4um, and inner wall electric polishing;
03.
certify non-stainless steel materials that come into contact with the material liquid as Class VI materials by the FDA or USP;
04.
To guarantee traceability, every stainless steel item that comes into contact with the material has a serial number, also known as a furnace number;
05.
To solve the issues brought on by analog transmissions, the device uses digital communication;
06.
The control software complies with FDA 21 CFR Part 11 criteria by utilizing self-developed software on the C # platform;
07.
storing data in a database and having dependable and developed interfaces for different DCS systems;
08.
Offer comprehensive GMP verification services and documentation;
09.
able to establish a series-parallel connection in a double-column configuration.
Bio-Pro Pilot & Process Chromatography System Specification
| Model No. | Bio-Pro 60 | Bio-Pro 180 | Bio-Pro 600 | Bio-Pro 1200 | Bio-Pro 2500 | Bio-Pro 4400 | Bio-Pro 10k |
|---|---|---|---|---|---|---|---|
| Infusion pump (single pump / double pump available) | High-precision constant flow pump | Sanitary Quaternary diaphragm pumps | Sanitary Quaternary diaphragm pumps/multi-pump head diaphragm pump | ||||
| Pump flow range (L/h) | 1~60 | 1~180 | 6~600 | 10~1200 | 50-2500 | 150~5000 | 150~10000 |
| Flow accuracy* | 1% or 5ml/min | 1% or 0.5L/h | 1% or 1.5L/h | 1% or 3L/h | 1% or 5L/h | 1% or 10L/h | 1% or 20L/h |
| Pipeline | 1/4"TC | 3/8"TC | 1/2"TC | 1/2"TC | 1"TC | 1½" TC | 2"TC |
| Pipe material | SS 316L(ASME BPE), Electro polishing Ra≤0.4um | ||||||
| System pressure resistance(bar) | 6 | ||||||
| UV-Vis Detector(nm) | Fixed single wavelength 280nm/Fixed dual wavelengths（254, 280, 290, 300） | 200-400/200-600/200-800nm Variable four wavelengths | |||||
| Conductivity range（mS/cm) | 0.1uS/cm~300mS/cm (0.1uS/cm~500mS/cm) | ||||||
| pH range | 0~14 | ||||||
| Power supply | 220VAC 50Hz | 380VAC 50Hz | |||||
| Operating temperature(℃) | 2~40 | ||||||
| Compression air(bar) | 5~7 | ||||||
| Frame size (mm)** | 1970*1130*1750 | 2400*1130*1800 | 3070*1130*1800 | 2850*1200*2217 | |||
| Weight(kg) | 260 | 300 | 320 | 360 | 600 | 800 | 1000 |
Related Products

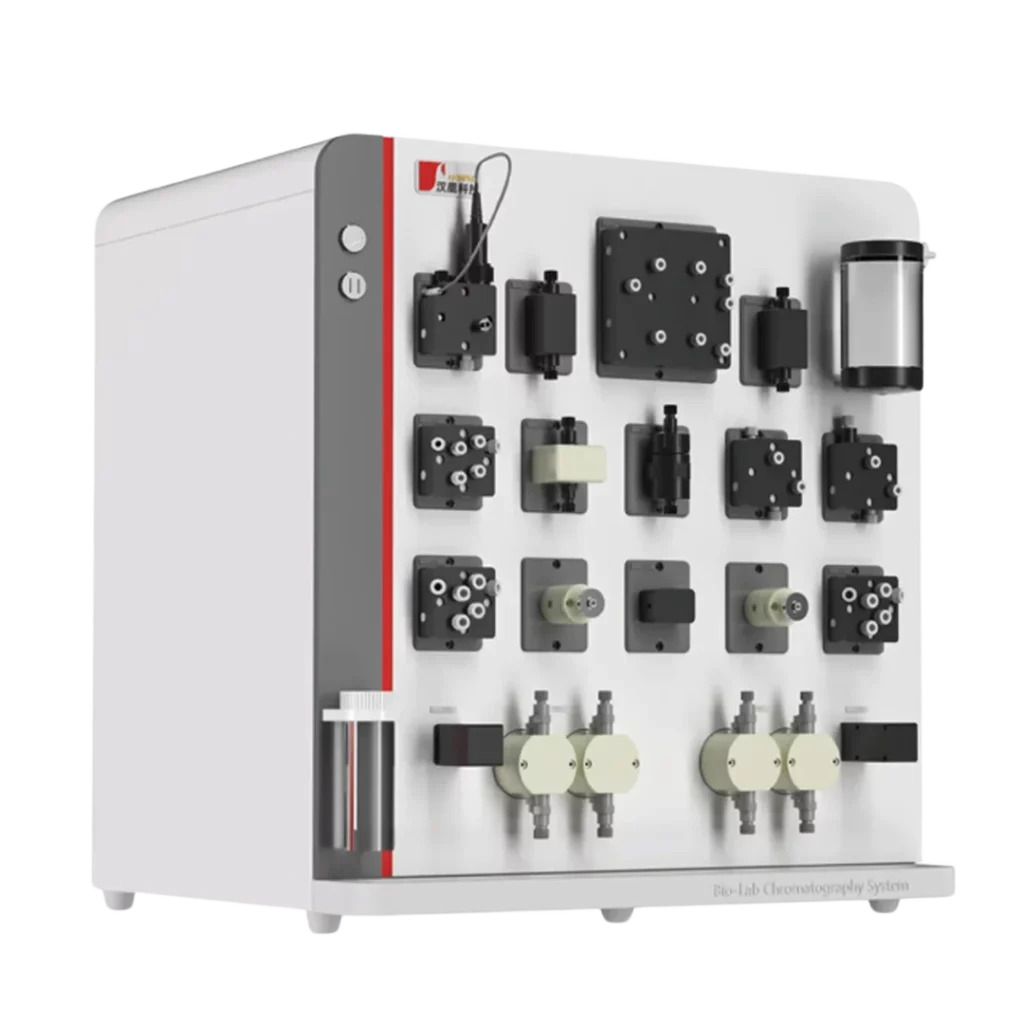

Bio-Lab Laboratory Chromatography System
