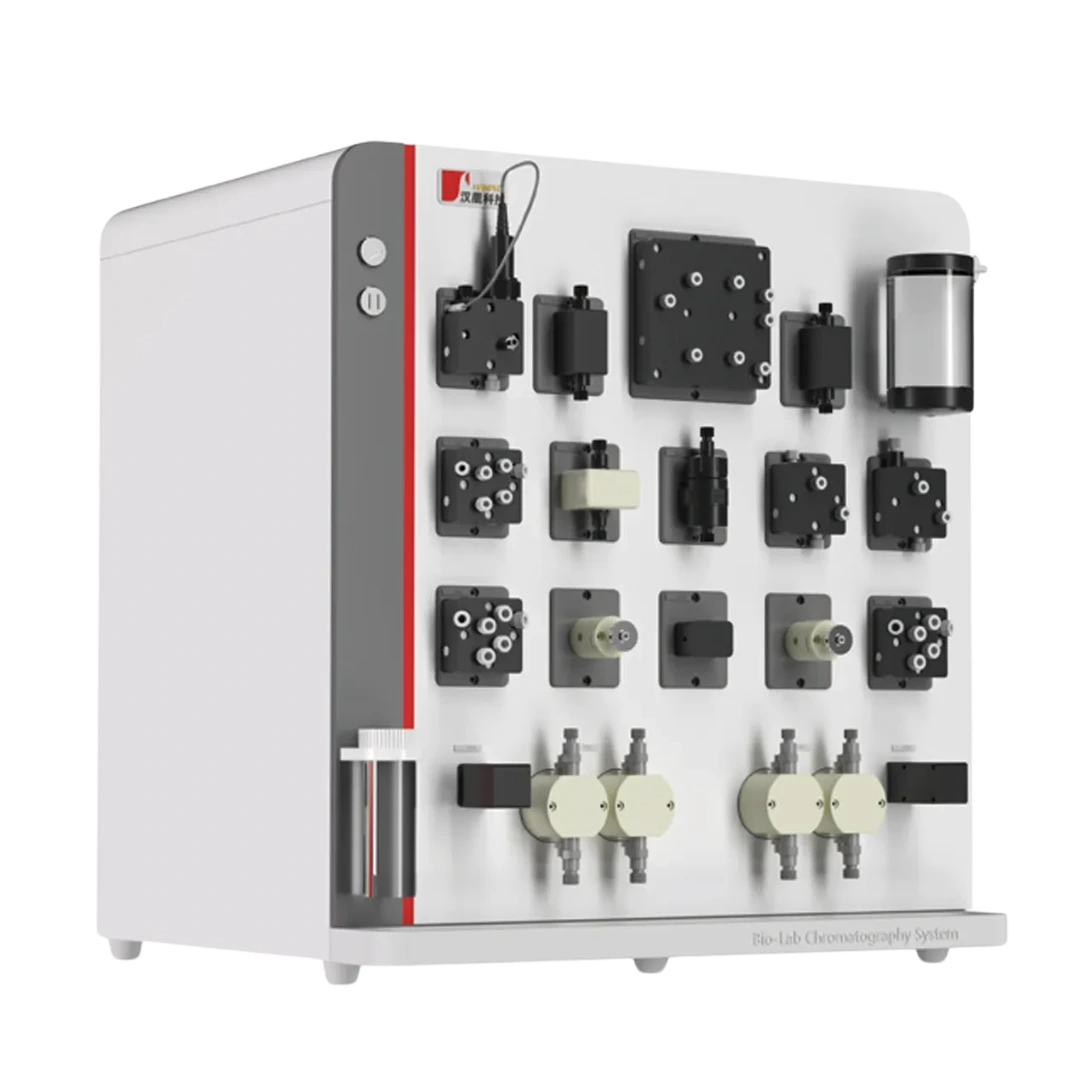

Bio-Lab Laboratory Chromatography System
Intech – Hanbon independently developed the Bio-Lab Laboratory Chromatography System, an extremely effective, quick, and dependable automatic chromatography tool that can be used to quickly purify biological molecules from micrograms to grams, including proteins, polypeptides, and nucleic acids. To satisfy the purification needs of diverse biological macromolecules in the lab, the system combines intelligent software and modular architecture with chromatographic column specifications.
Technical Features of Bio-Lab Laboratory Chromatography System
01.
High-performance system pumps, detectors, mixers, and different control valves make sure that intended results may be reached fast and with good accuracy and reproducibility.
02.
The modular design makes it easier to maintain the system, and when paired with powerful system software, it can make configuration upgrades that are flexible enough to work with multiple user login modes.
03.
Stacked pipeline design, small dead volume of pipeline, good biocompatibility of all pipelines and parts that come into touch with the sample, and full protection of protein activity;
04.
The software meets the criteria of GLP/GMP and FDA 21 CFR Part 11;
05.
The software has all the features it needs, is easy to use, and has an interface that can be switched between Chinese and English to meet the needs of users with different levels of access and to keep track of all audits.
Bio-Lab Series Configuration
| Series configuration | Bio-Lab 30 | Bio-Lab 100 | Bio-Lab 150 | Bio-Lab 300 | |
|---|---|---|---|---|---|
| Mobile phase selection module | Inlet valve | 2 Channels | 2 Channels | 2 Channels | 4 Channels |
| Infusion module | Infusion pump | PEEK pump, made of bioinert material, features self-flushing of the pump head and can provide excellent gradient accuracy and repeatability | |||
| Flow velocity range | 0-30mL/min | 0-100mL/min | 0-150mL/min | 0-300mL/min | |
| Flow accuracy | ±1% | ||||
| Gradient type | Isocratic, linear, and the gradient ratio can be modified online | ||||
| Mixer | 0.5/2mL | 5mL | |||
| Injection module | Injection Valves | Automatic injection, software-controlled switching of Load, Inject and Waste functions, capable of quantitative loop injection | |||
| Separation module | Column position valve | Supports forward/reverse flushing and Bypass functions | |||
| Detection module | UV Detector | Simultaneously detect any two wavelengths within the range of 190-400nm, with wavelength accuracy and repeatability: ±1nm | |||
| Electrical conductivity detector | Detection range: 0.001-999.99mS/cm, accuracy ±2%, equipped with a temperature sensor | ||||
| pH Detector | Detection range: pH 0-14, accuracy ± 0.05 | ||||
| Temperature sensor | Integrated on the conductivity detector, it can perform temperature compensation for pH and conductivity | ||||
| Data processing module | Chromatographic workstation | Pre-install the chromatography workstation | |||
| Computer | All-in-one computer, CPU≥I5, memory ≥8G, hard disk ≥1T | ||||
| System accessories | Back pressure valve | Provide a certain back pressure to the system | |||
| Toolkit | Including PEEK/PTFE tubing, installation manual, user manual, tubing joints, commonly used tools, etc | ||||
| System external dimensions | Power | 1500W | 2000W | ||
| Dimensions (mm) | 450×585×604 | 616×544×673 | |||
Bio-Lab 600/1000 Configuration List
| Model | Bio-Lab 600 | Bio-Lab 1000 |
|---|---|---|
| Infusion pump | A/B pump Velocity range: 4-600ml/min (Double pump superimposed column mode 1-1200ml/min) Velocity accuracy: ±1.5% Scope of use: 5%-95% Pressure range: 0-2MPa (20bar, 290 psi) |
A/B pump Velocity range: 6-1000ml/min (Double pump superimposed column mode 12-2000ml/min) Velocity accuracy: ±1.5% Scope of use: 5%-95% Pressure range: 0-1.5MPa (15bar, 218 psi) |
| AB pump inlet | Single pump 4 inlet; Double pumps total 8 intakes | |
| Bubble sensor | A maximum of three files are supported | |
| Pressure sensor | A, B pump after each one, one in front of the column, one after the column, a total of four, the detection range of 0-2MPa | |
| Bubble trap | Effective removal of bubbles from the system, optional online or offline; Bubble trap volume: 120ml | |
| Mixer | Mixing chamber volume: 10ml | |
| Column valve | Single column | |
| UV detector | 190-400nm, dual wavelength detection, wavelength accuracy ±1nm | |
| pH detector | Detection range: 2-12, accuracy ±0.1 | |
| Conductance detector | Detection range: 0.1-999.9mS /cm; Flow pool volume: Accuracy: ±3%, built-in temperature sensor, automatic conductance temperature compensation | |
| Outlet valve | ≥4 exits | |
Related Products

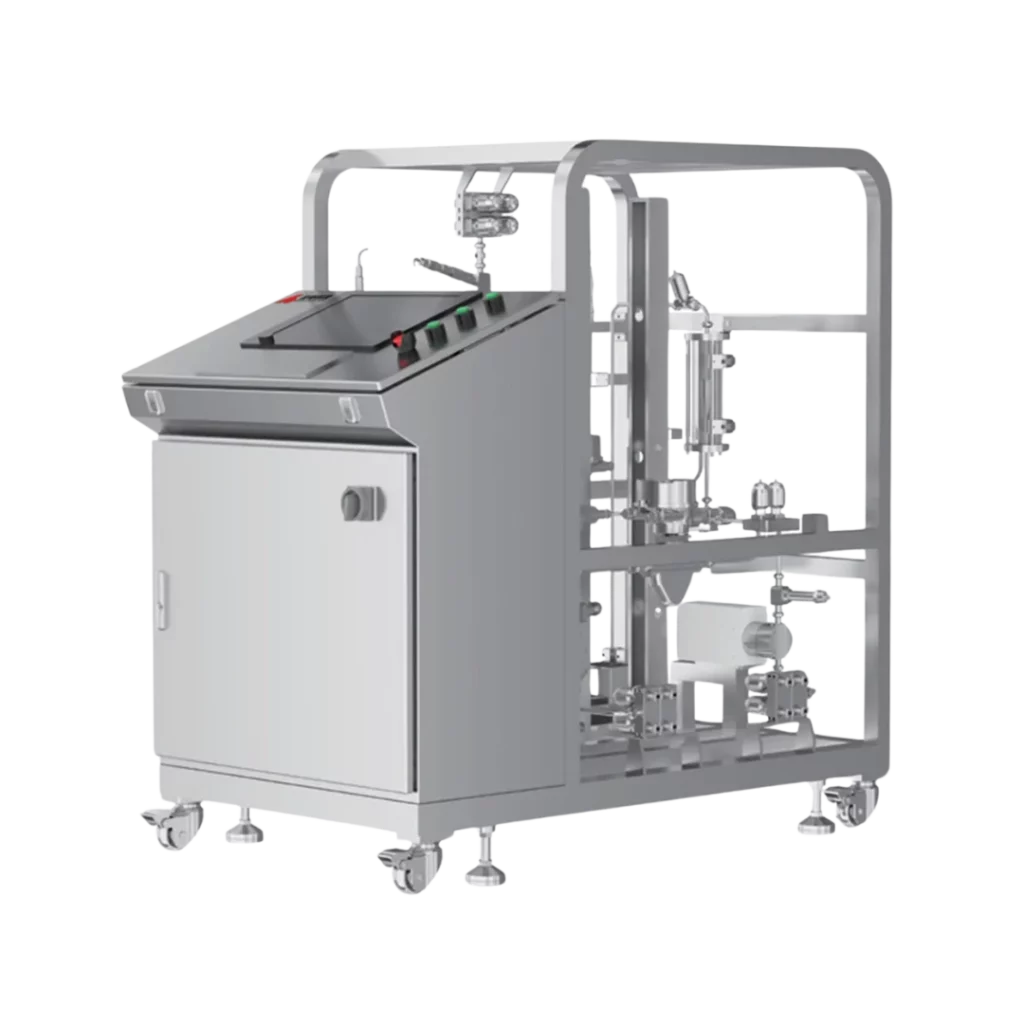

Bio-Pro Pilot & Process Chromatography System
