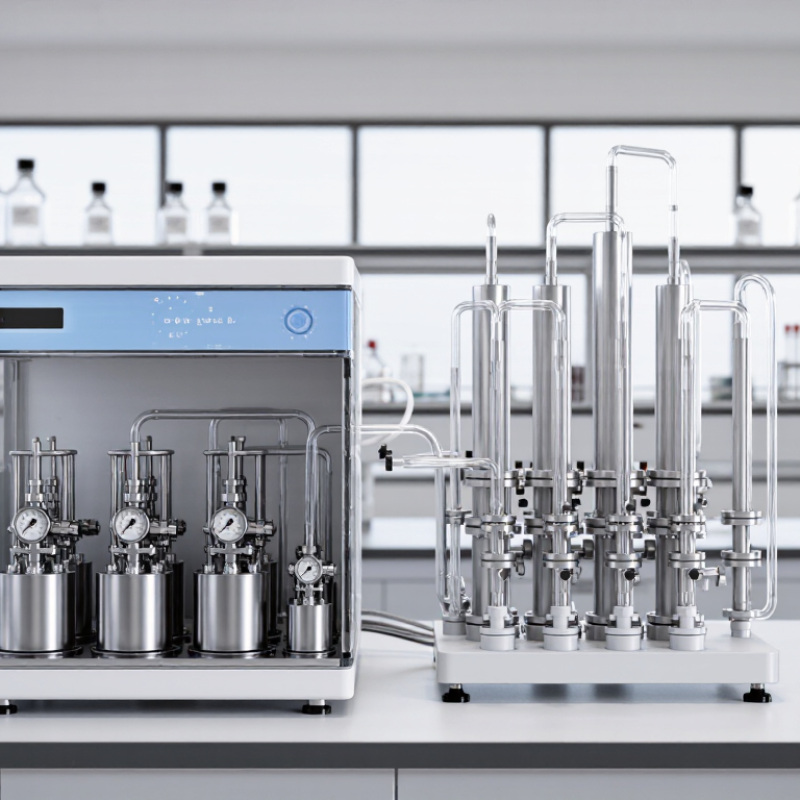

How to Choose a Supercritical Fluid Chromatography System?
Choosing a Supercritical Fluid Chromatography system starts with the work your laboratory needs to perform, not a brochure’s headline specifications. The right setup should fit your samples, methods, staff, and available bench space. Small details matter.
Consider the compounds you analyze, their solubility, and the separation goals. Many systems use carbon dioxide with a modifier, often an alcohol, to adjust mobile-phase strength. The instrument must control pressure, temperature, and flow reliably. These conditions can affect retention and reproducibility. Ask how the system handles gradient mixing, back-pressure regulation, and routine method changes. A short demonstration using representative samples can reveal practical limitations that a specification sheet may not show.
Check column compatibility, detector options, fraction collection needs, and expected sample throughput. If your work involves method development, flexible control and clear data reporting may be especially useful. For routine analysis, dependable operation and straightforward maintenance can matter more than extra features. Not every lab needs the same configuration. The best choice depends on workload.
Also review installation requirements, service availability, training, consumables, and total ownership costs. Ask vendors for documented performance data and support terms, then compare them against your own acceptance criteria. If possible, have experienced users assess software and maintenance tasks during a trial. One uncertainty may remain: performance with your specific samples cannot always be predicted from published examples. A careful evaluation, with realistic test conditions, helps turn a promising instrument into a dependable laboratory tool.
Define the SFC Workload by Sample Type, Throughput, and Purity Target
Choosing a supercritical fluid chromatography system starts with the samples, not the instrument specifications.
List their chemical properties, expected concentration range, and whether they are achiral, chiral, or strongly polar. These details affect column choice, modifier needs, and sample preparation. Some polar or ionic compounds may require careful method development, and SFC may not suit every sample. Test representative materials before committing to a system.
Then define the real workload.
Estimate samples per day, acceptable run times, and how often methods will change. A busy screening lab may need reliable automated injections and quick equilibration. Preparative work adds different demands: fraction collection, recovery, and enough capacity for the required product amount. Check these needs using actual sample sets, not just vendor cycle-time estimates. Small differences matter.
Set a clear purity target, too.
Analytical profiling and preparative isolation do not need the same configuration. Consider detector sensitivity, collection control, and whether collected fractions need further analysis. Run repeat injections and inspect both purity and recovery; a clean chromatogram alone can be misleading. Keep some room for growth, but avoid paying for capacity your workload may never use. A spreadsheet helps. It is not the whole story. Real samples often behave less neatly than predicted.
Match CO₂ Delivery to Its Critical Point: 31.1 °C and 7.38 MPa
How to Choose a Supercritical Fluid Chromatography System?
Match CO₂ Delivery to Its Critical Point: 31.1 °C and 7.38 MPa
Carbon dioxide becomes supercritical above approximately 31.1 °C and 7.38 MPa. These values are listed in NIST’s REFPROP thermophysical-property data. They are not operating targets by themselves; they mark the point where liquid and gas phases merge. A system must control both pressure and temperature at the column inlet, not merely display suitable setpoints. Small temperature shifts near the critical point can change CO₂ density and solvent strength. That affects retention, selectivity, and repeatability.
Check the pump’s delivery range under actual flow conditions, then verify the pressure rating of every wetted component. A pressure gauge near the pump may not show conditions at the column head, especially when tubing, restrictors, or modifiers add resistance. Use calibrated sensors and record pressure and temperature during method development. A controlled column oven matters. So does stable CO₂ delivery. NIST data provide a sound reference, but real mixtures containing alcohol modifiers behave differently from pure CO₂. I would not assume a setpoint guarantees supercritical conditions throughout the system; measure where practical, and document the gap between the instrument display and the column.
Size Pumps and Back-Pressure Control for the Required Operating Range
Choose pumps that deliver stable carbon dioxide and modifier flow across the intended method range. Check the carbon dioxide pump’s capacity at the highest planned pressure and flow, including startup conditions and gradients. Do not size by average flow. The modifier pump should provide repeatable delivery as solvent composition changes. Small errors matter.
Select a back-pressure regulator (BPR) whose control range covers routine operating pressures, not merely the system’s maximum rating. Confirm its pressure rating, adjustment range, and control stability against the column and method requirements. Pressure is not just a safety number; it influences fluid density and retention. Allow for pressure drops through tubing and the column when estimating the pressure needed at the regulator.
A specification sheet can make selection look simpler than it is. Real methods vary. Check the proposed setup using the intended flow, solvent blend, column, and temperature range. Look for steady pressure during gradients, rather than judging performance from a single static reading. Leave suitable operating headroom, and verify the system’s pressure limits before use. Lower-range control deserves attention too; it can be overlooked when selection focuses only on peak pressure.
How to Choose a Supercritical Fluid Chromatography System? - Size Pumps and Back-Pressure Control for the Required Operating Range
| System Scale |
Typical CO₂ Flow Range |
Typical Column Format |
Pump Capacity to Consider |
Back-Pressure Control Range |
Best-Fit Applications |
Selection Checks |
| Analytical |
Approximately 0.5–5 mL/min |
Typically 2.1–4.6 mm internal diameter; short to standard analytical lengths |
CO₂ pump sized for the intended flow and pressure; a separate modifier pump commonly delivers low milliliter-per-minute flows |
Choose a pressure-rated BPR that covers the method’s set point; systems commonly operate in the roughly 100–300 bar range |
Method development, routine analytical separations, purity testing, and chiral screening |
Confirm accurate low-flow delivery, gradient mixing, pressure stability, and compatibility with the selected column and solvents. |
| Semi-preparative |
Approximately 5–50 mL/min |
Often 10–20 mm internal diameter; column dimensions vary with loading and separation goals |
CO₂ pump and modifier pump should support the maximum combined flow and the required delivery pressure |
Typically select a BPR with an operating range suitable for the chosen method, often around 100–300 bar |
Purification of milligram-to-gram quantities, fraction collection, and scale-up from analytical methods |
Check pump capacity at operating pressure, fraction-collection needs, solvent consumption, and heat management during expansion. |
| Preparative |
Approximately 50–200 mL/min or higher, depending on system design |
Commonly 20–50 mm internal diameter or larger, selected for sample load and throughput |
High-capacity CO₂ and modifier pumps; verify continuous-duty flow and pressure specifications, not just maximum flow |
Use a process-rated BPR sized for the target flow and pressure; the full system pressure rating must also be suitable |
Higher-throughput purification, production support, and larger-scale compound isolation |
Assess CO₂ supply and recovery, pump cooling, tubing and fittings, safety interlocks, and pressure relief provisions. |
Practical note: These are indicative selection ranges, not universal specifications. Required flow depends on column diameter, particle size, solvent composition, and method conditions. CO₂ reaches its critical point at approximately 31.1 °C and 73.8 bar; actual operating pressure is method-dependent and must remain within the pressure ratings of every wetted component. Check manufacturer specifications and applicable safety requirements before system selection.
Choose Columns and Detectors to Fit the Separation and Detection Needs
Choose the column around the separation problem, not the instrument brochure. For chiral compounds, screen several chiral stationary phases; for polar analytes, compare silica and polar-embedded phases. Keep column dimensions and particle size consistent during comparisons, or selectivity changes may be confused with efficiency. NIST’s Chemistry WebBook lists carbon dioxide’s critical point at about 31.0 °C and 7.38 MPa. These values help frame operating conditions, but they do not replace method-specific pressure and temperature testing. Small changes matter. I would not treat one screening result as a universal rule.
Match the detector to the analyte and the required evidence. UV or PDA detection is practical for compounds with suitable chromophores; it can miss weakly absorbing analytes. MS offers greater selectivity for complex mixtures, but the interface and make-up solvent must support stable ionization as CO2 expands. A detector that looks sensitive on paper may perform differently with the actual matrix. USP General Chapter <621> identifies resolution, repeatability, and peak shape as system-suitability considerations. Set acceptance limits for the method rather than assuming one detector or column is automatically best.
Tips: Screen candidate phases with a small, representative sample set. Record retention, resolution, peak shape, and detector response. Change one variable at a time; otherwise, the result is harder to interpret.
