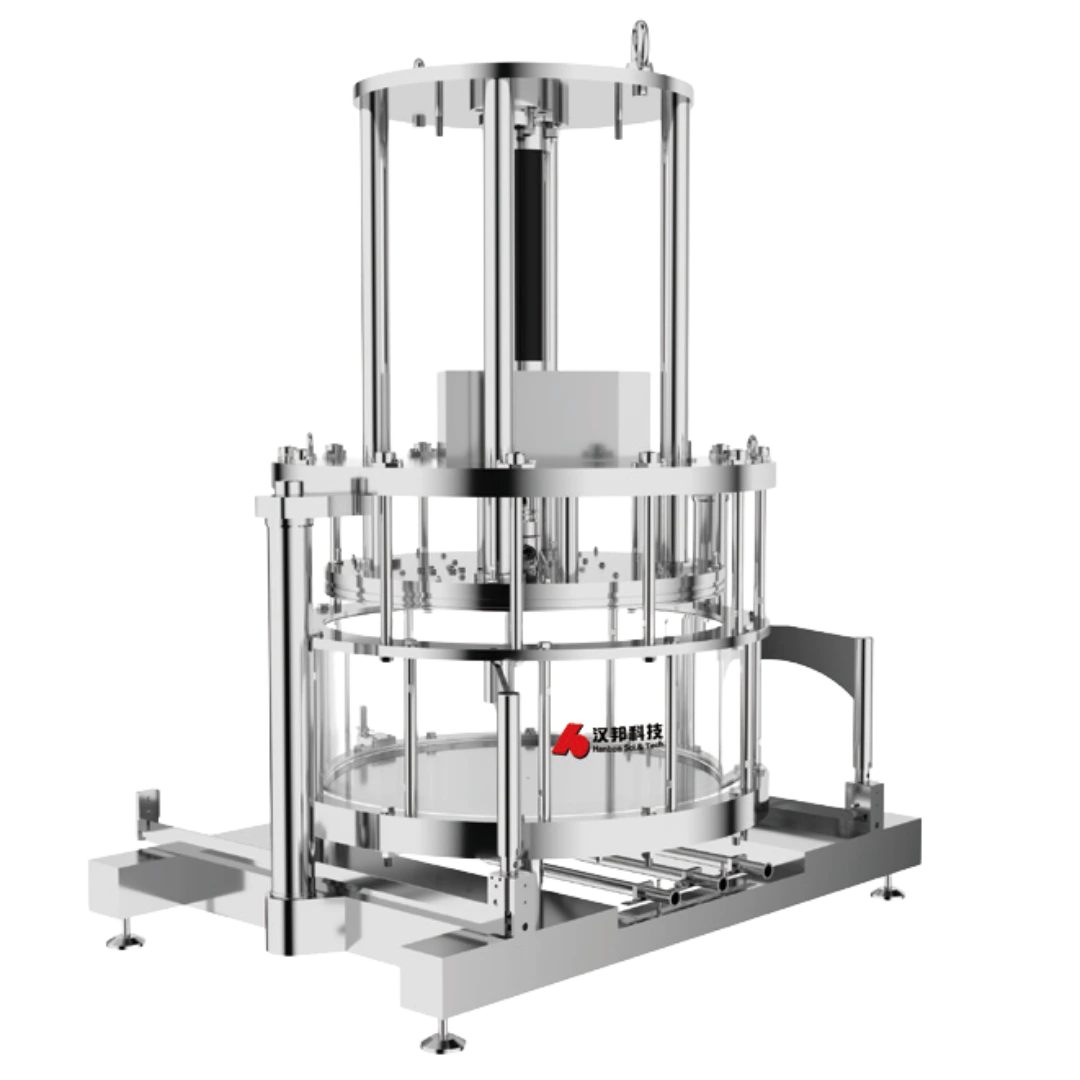

ACC Automatic Axial Compression Chromatography Column
By ensuring consistent filling outcomes and repeatable chromatographic results, ACC® Automatic Axial Compression Chromatography Columns can lower the risks associated with significant batch variations in the production process. The majority of chromatographic fillers and associated column loading techniques used in the biopharmaceutical business can be used with the ACC® family of automatic chromatographic columns, which also satisfy the manufacturing needs of a wide range of goods.
Technical Features of ACC® Automatic Axial Compression Chromatography Column
01.
Automated Function
Fully automated loading, unloading, and cleaning are made possible by an integrated column loading workstation, which guarantees easier handling and less maintenance labor.
02.
Top-Notch Components
Reliability and longevity are ensured by sourcing all essential parts from globally renowned brands.
03.
Entire Safety System
During operation, persons and equipment are secured by dual protection using mechanical safeguards, photoelectric sensors, and software.
04.
Technology for Patented Sealing
Superior sealing performance is provided by a proprietary piston sealing design, which also reduces leakage and maintains process integrity.
05.
Novel Exhaust System
For smooth operation, a patented piston exhaust mechanism removes air quickly and effectively.
06.
Enhanced Distribution of Flow
A distributor with scientific engineering guarantees even dispersion of materials and solvents, improving the effectiveness of separation.
07.
Extremely Accurate Control
Outstanding accuracy is attained via the servo motor drive system, enabling reliable and repeatable performance.
08.
Clean Design
Software developed in full compliance with international regulatory standards, including 21 CFR Part 11, ensuring traceability and validation for clinical and industrial applications.
09.
Adherence to Regulations
Software for column workstations satisfies all FDA 21 CFR Part 11 criteria, including those for dependable storage, remote backup, and secure data administration.
ACC® Automatic Axial Compression Chromatography Column Specifications
| Model No. | ACC 300 | ACC 400 | ACC 450 | ACC 600 | ACC 800 | ACC 1000 | ACC 1200 | ACC 1400 | ACC 1600 | ACC 1800 | ACC 2000 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ID (mm) | 300 | 400 | 450 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Column height (mm) | Standard 600, Other specifications can be customized | ||||||||||
| Loading height (mm) | 50-300 | ||||||||||
| Loading volume (L) | 3-20 | 6-37 | 8-47 | 14-84 | 25-150 | 39-235 | 56-339 | 77-461 | 100-603 | 127-763 | 157-942 |
| Pressure (bar) | Design pressure: 5bar / Working Pressure: 3bar | ||||||||||
| Mesh size (μm) | 10 / 20μm (316L) | ||||||||||
| Operating temperature(℃) | 2-40℃ | 15~30℃ | |||||||||
| Compressed air (bar) | 5-7 | ||||||||||
| Weight (kg) | 305 | 500 | 600 | 1050 | 2180 | 3164 | 4495 | 6000 | 8800 | 11000 | 16500 |
| Power (KW) | 2.5 | 5 | 7 | 9 | 10 | ||||||
| Using area (mm) | 900*600 | 1040*690 | 1090*770 | 1380*920 | 1540*1250 | 1770*1450 | 2160*1700 | 2400*1910 | 2810*2180 | 3000*2430 | 3200*2630 |
| Maintenance size (mm) | 900*1000 | 1040*1300 | 1090*1420 | 1380*1760 | 1540*2380 | 1770*2730 | 2160*3200 | 2400*3630 | 2810*4150 | 3000*4630 | 3200*5110 |
| Max maintenance height (mm) | 2270 | 2460 | 2455 | 2500 | 2720 | 2895 | 3225 | 3360 | 3440 | 3680 | 3685 |
| Entrance height (mm) | 1595 | 1760 | 1772 | 1830 | 2020 | 2185 | 2500 | 2640 | 2716 | 2930 | 2955 |
| Inlet and outlet diameter (mm) | 3/8", 1/2" | 3/4", 1" | 1.5", 2.0" | ||||||||
Related Products

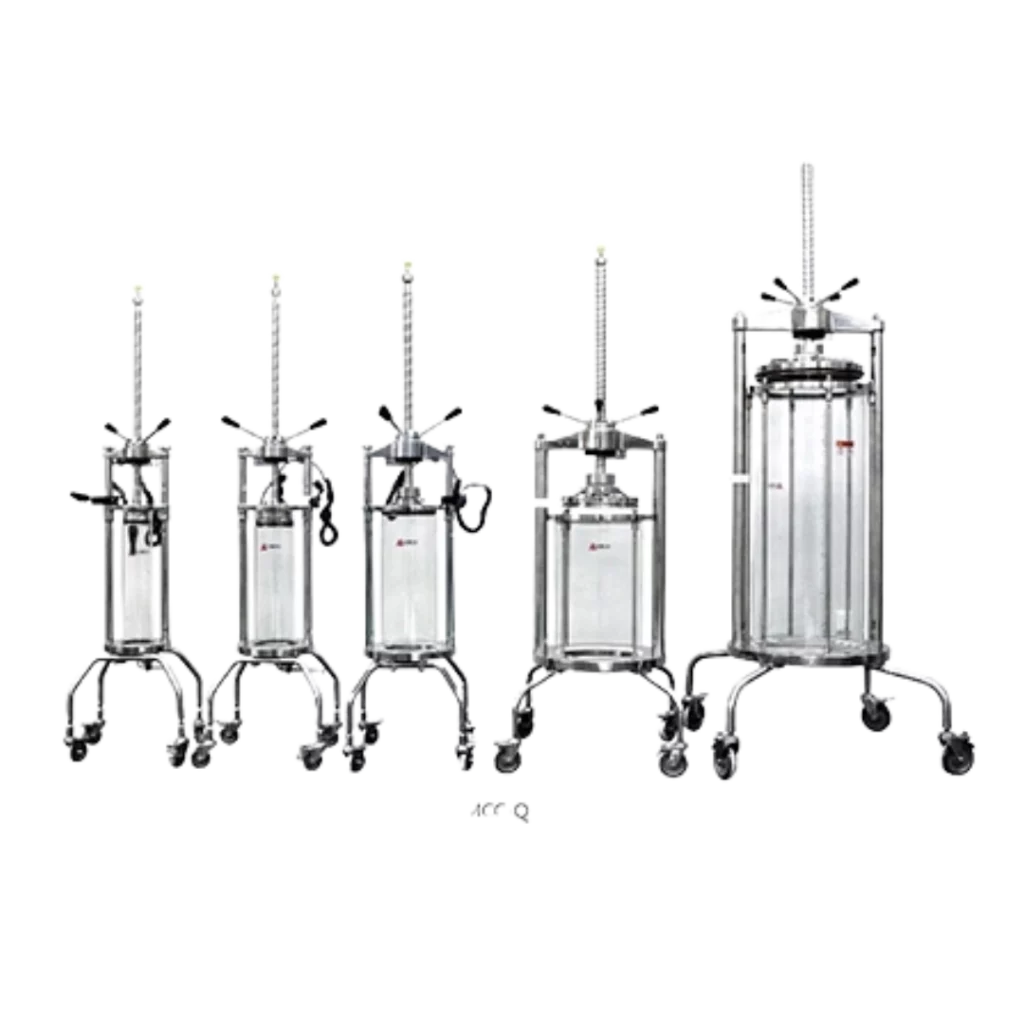

MCC Manual Chromatography Column
